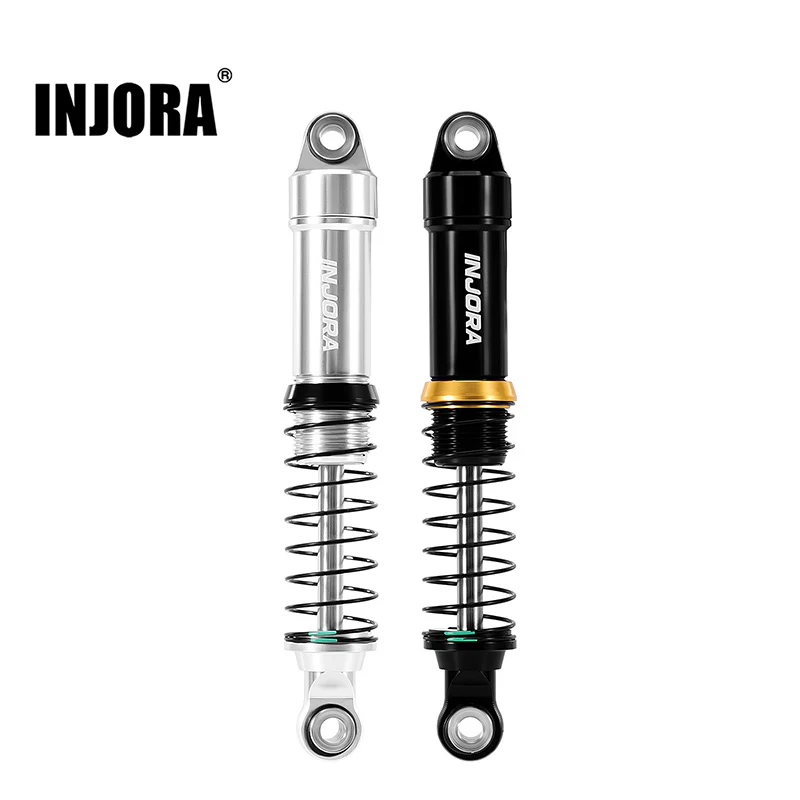

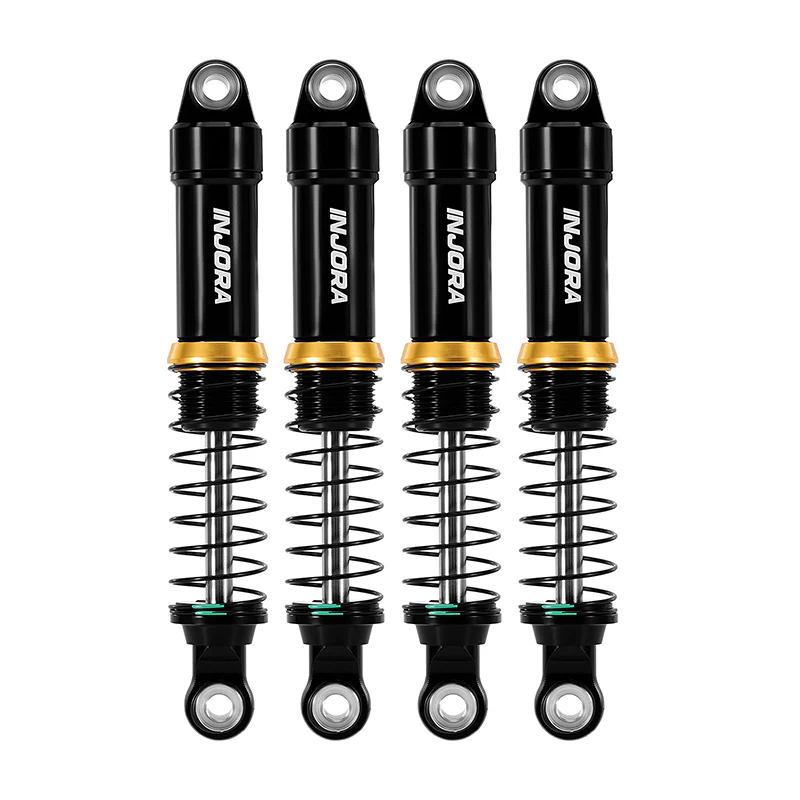

INJORA LS 59mm Aluminum Oil Shocks for 1/18 Redcat Ascent-18 HPI Venture18

Note:

• The shock oil is not included.
• Add preload using the threaded collar for stronger rebound

Compatibility:

• 1/18 Redcat Ascent-18 Brushed — Compatible
• 1/18 Redcat Ascent-18 Brushless — Compatible
• 1/18 Redcat Ascent-18 Scout II Brushed — Compatible
• 1/18 Redcat Ascent-18 Scout II Brushless — Compatible
• 1/18 Redcat Ascent-18 Apex — Not Compatible
• 1/18 HPI Venture18 — Compatible

Features:

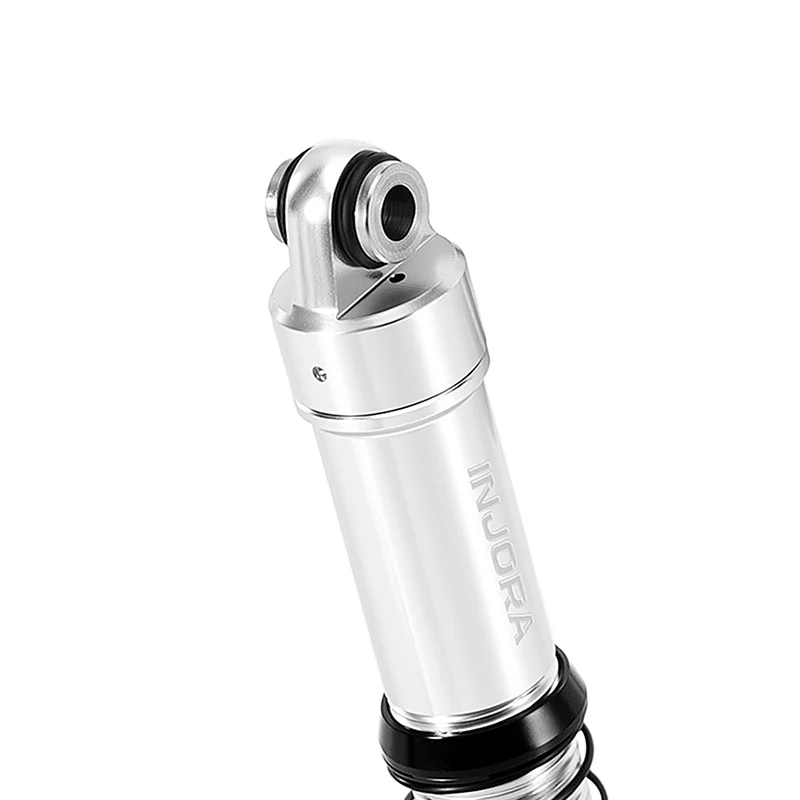

• CNC-machined aluminum construction
• Two spring rates included

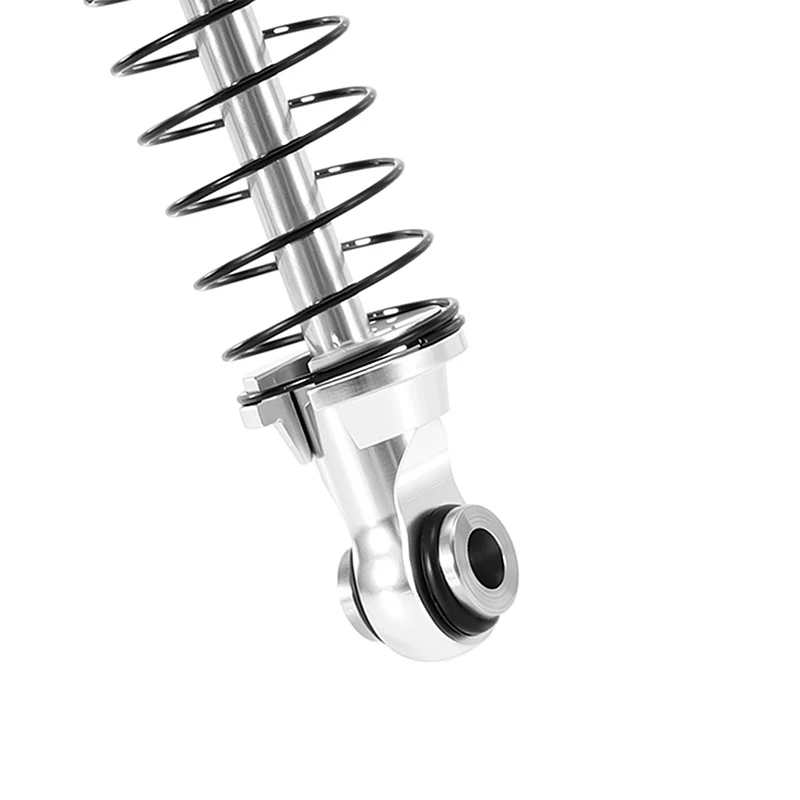

• Lower spring layout for improved CG and reduced chassis interference

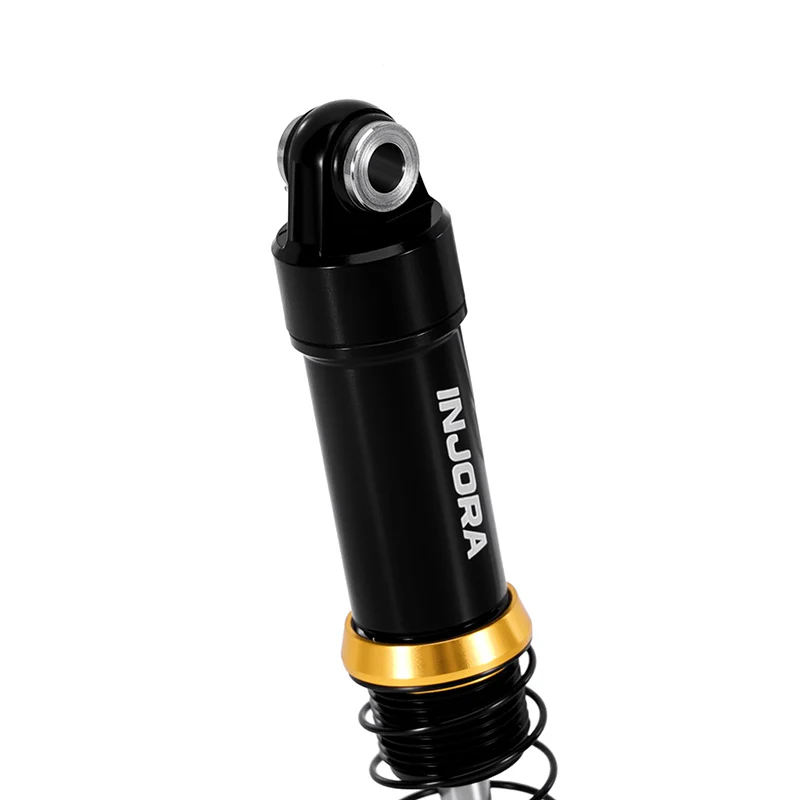

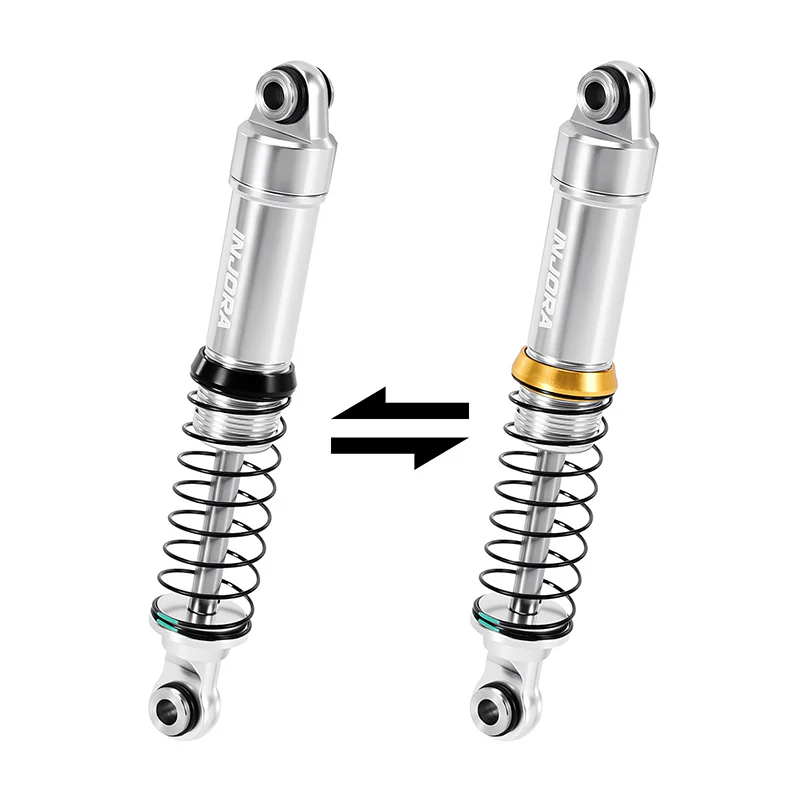

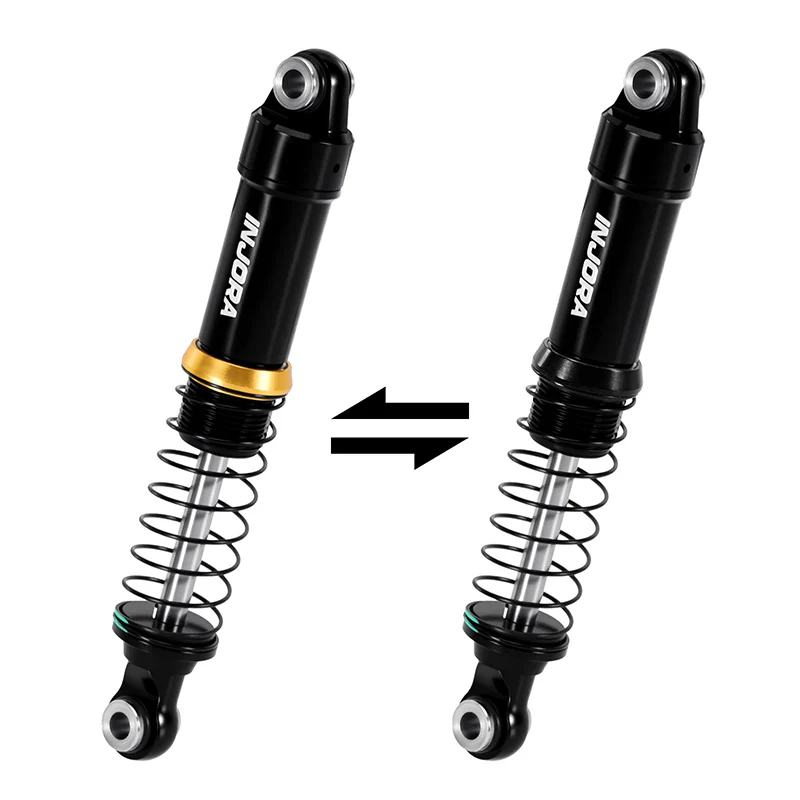

• Threaded shock bodies with interchangeable gold and black preload collars

Shock Specifications:

• Part Number: 4M-122
• Product Series：LS Shocks (Lower Spring)
• Color: Black / Silver

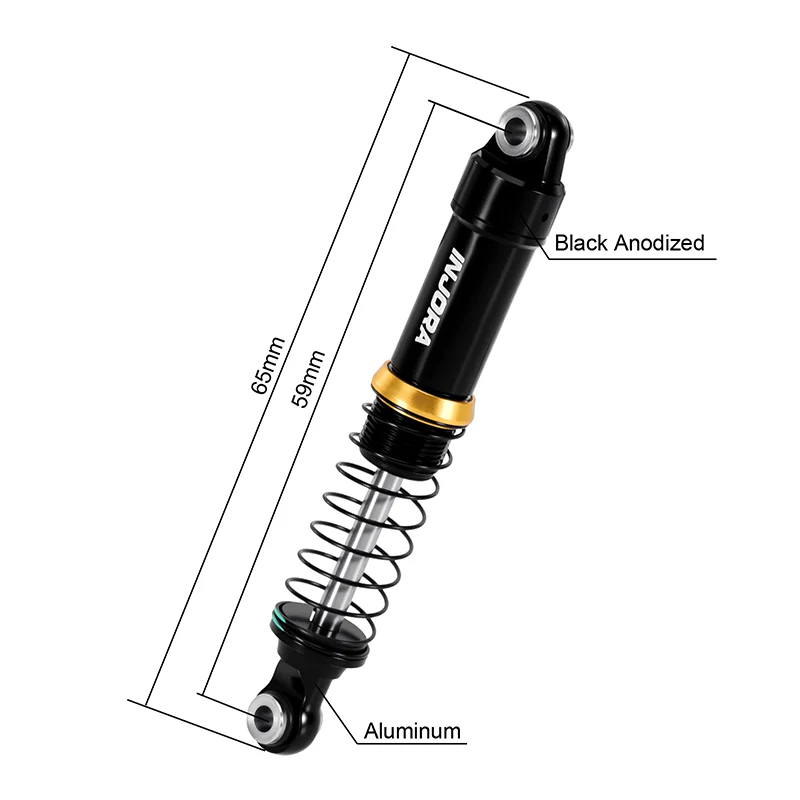

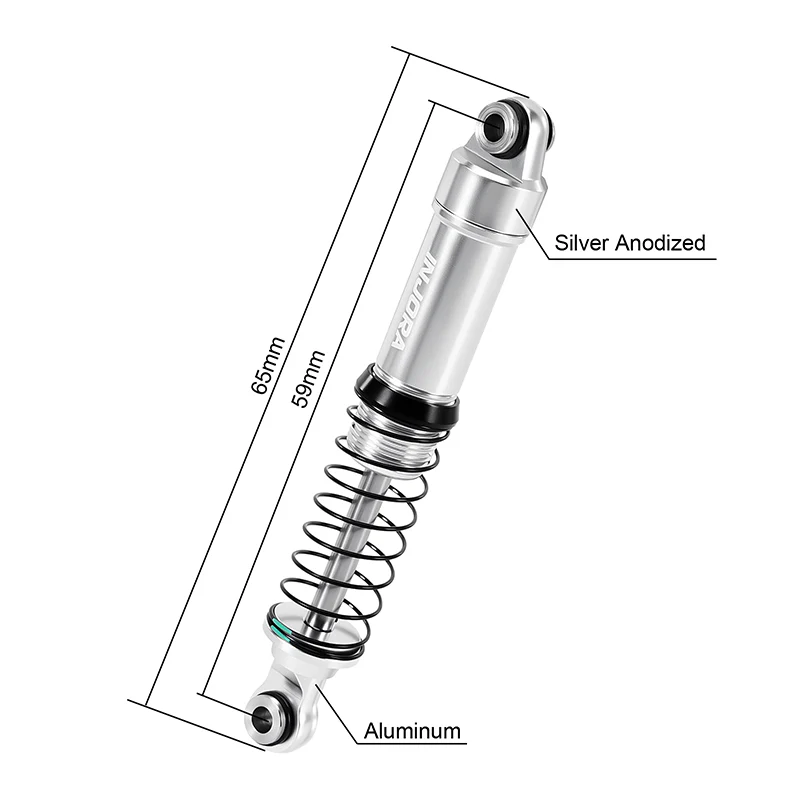

• Full Length: 65mm
• Extended Length (eye-to-eye): 59mm
• Compressed Length (eye-to-eye): 42mm
• Weight (each): 5.0g

Spring Specifications:

• Inner Diameter: 8.5mm
• Free Length: 26mm
• Total Coils: 10
• Wire Diameter: 0.45mm (Green Mark), 0.5mm (Purple Mark)

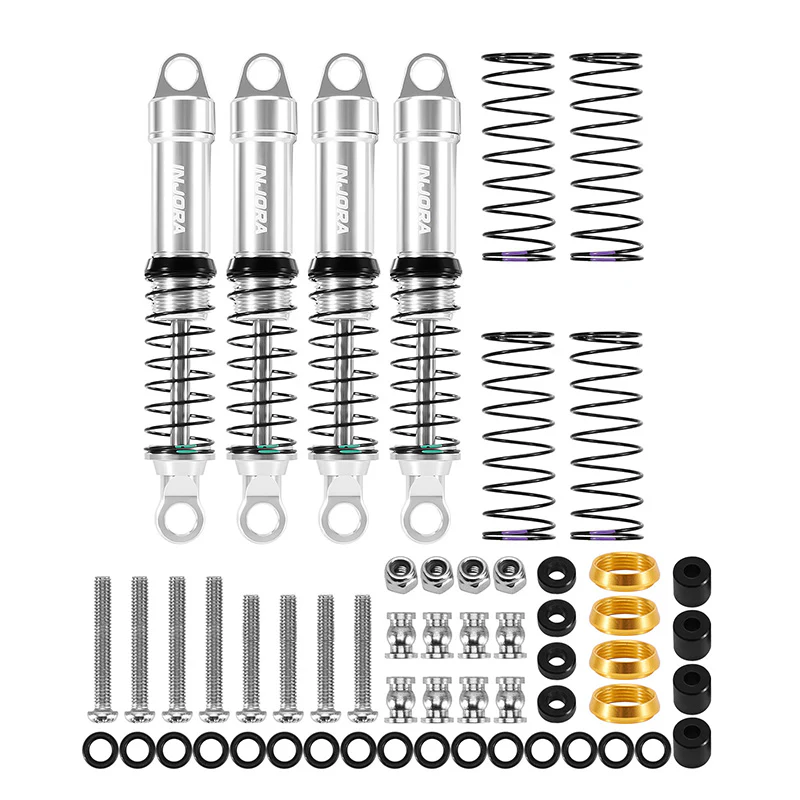

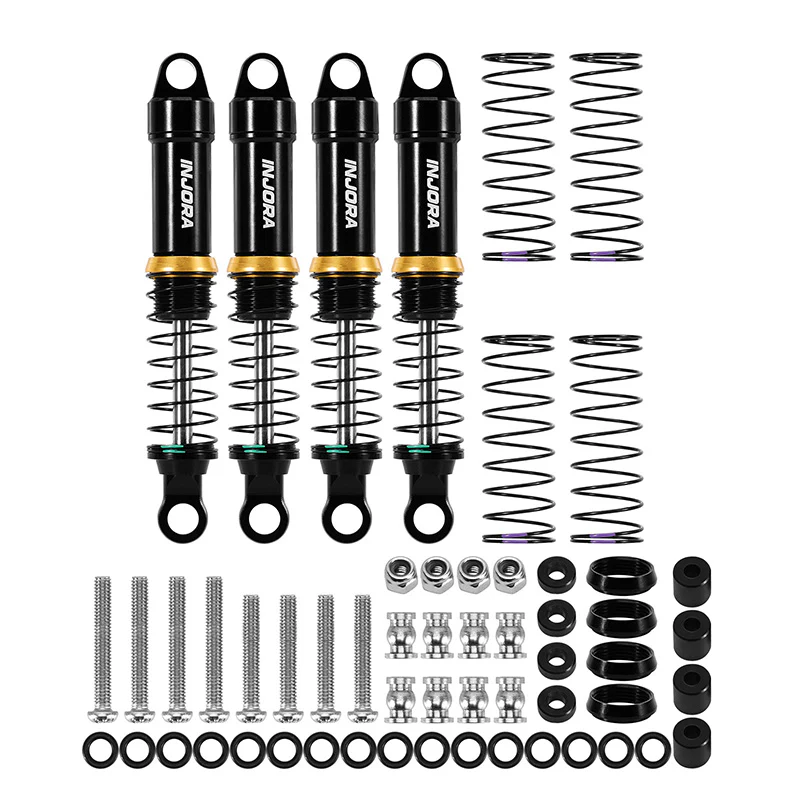

Package List:

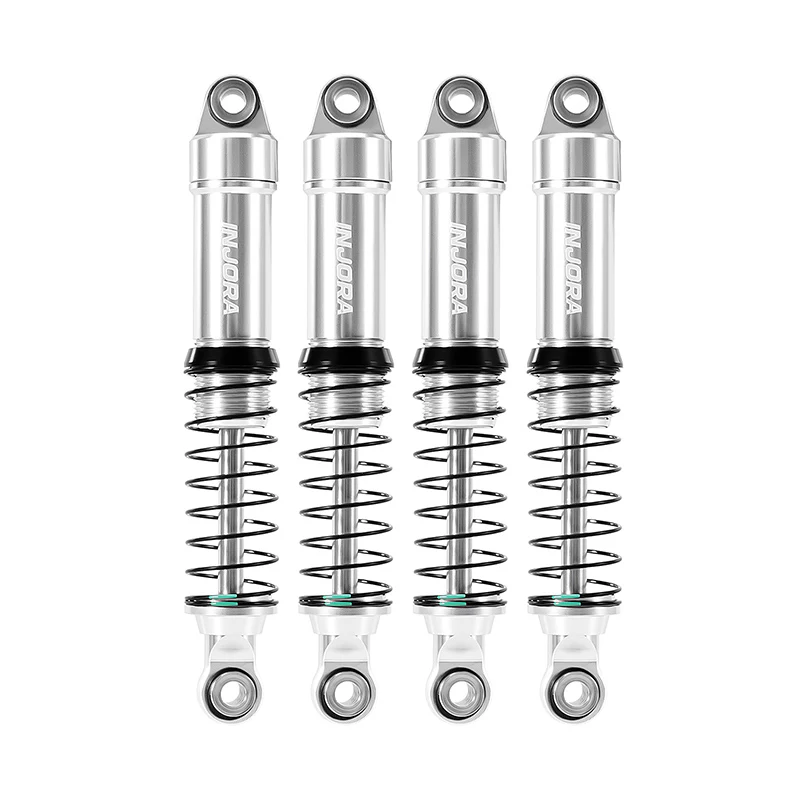

• 4 × Shocks
• 4 × Extra Springs
• 4 × Extra Preload Collars
