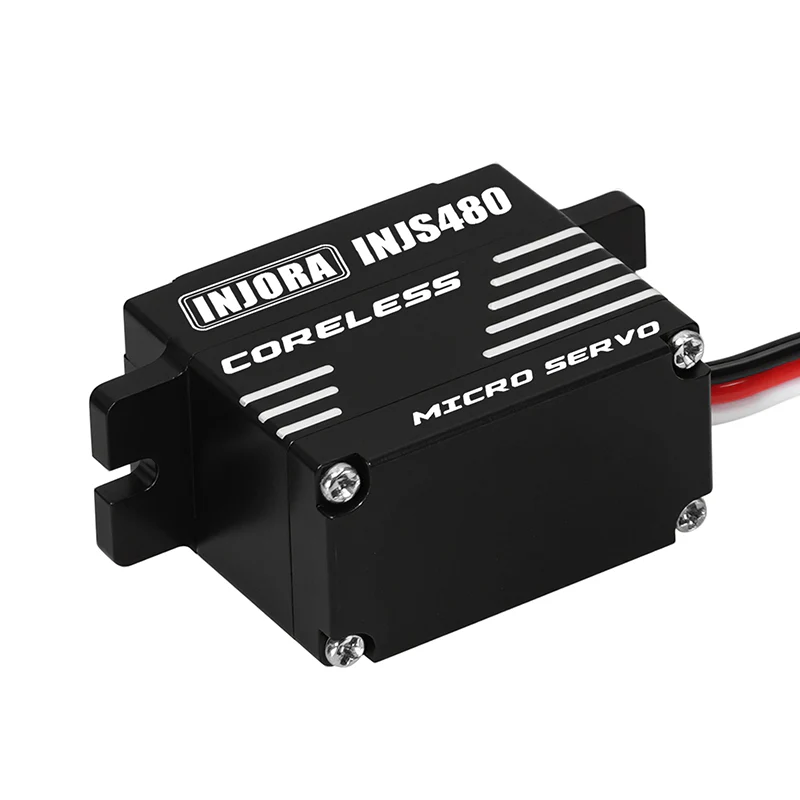

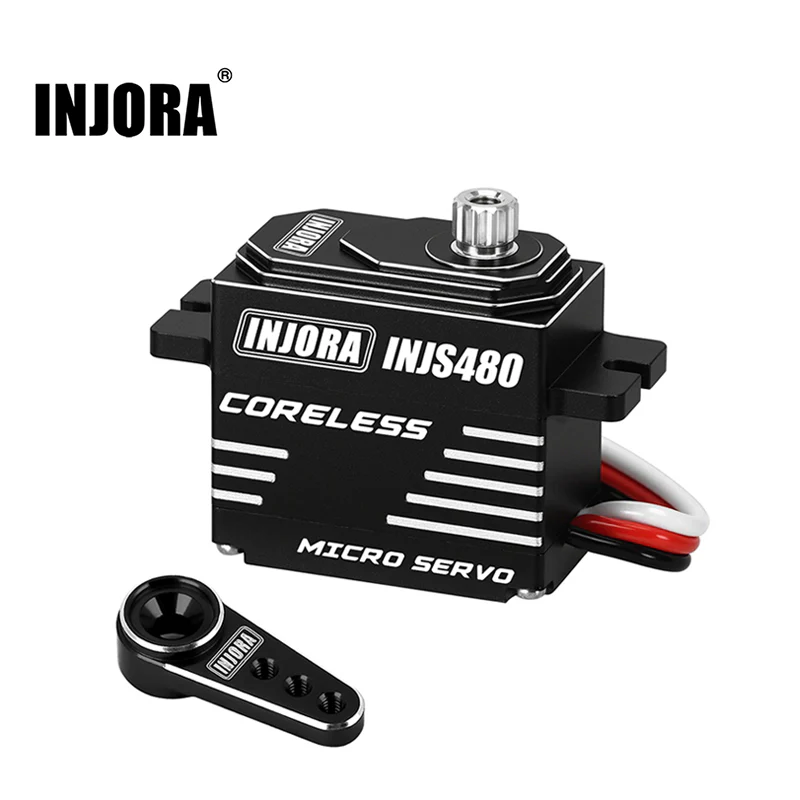

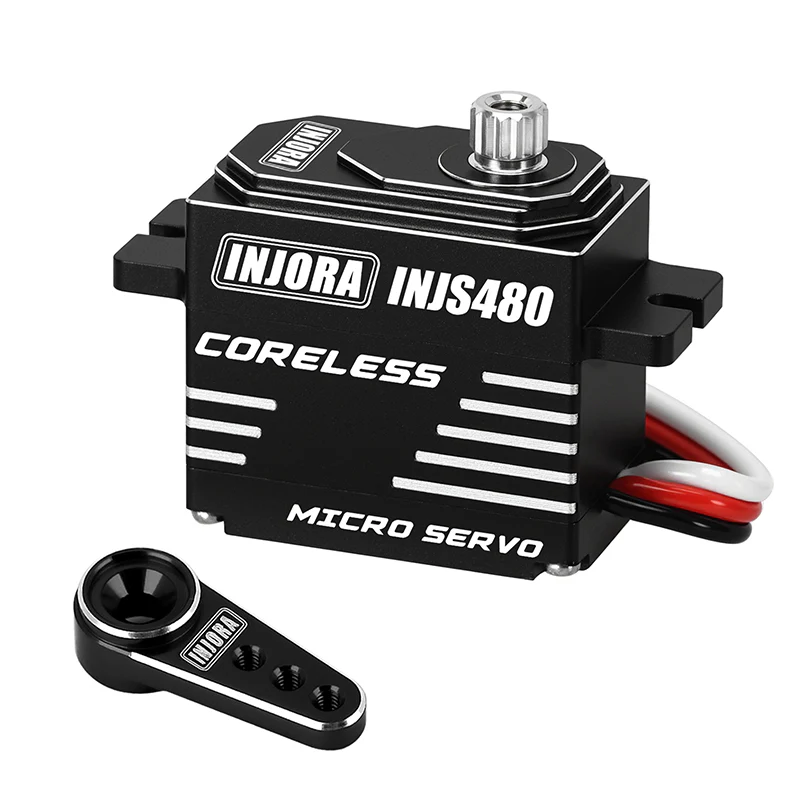

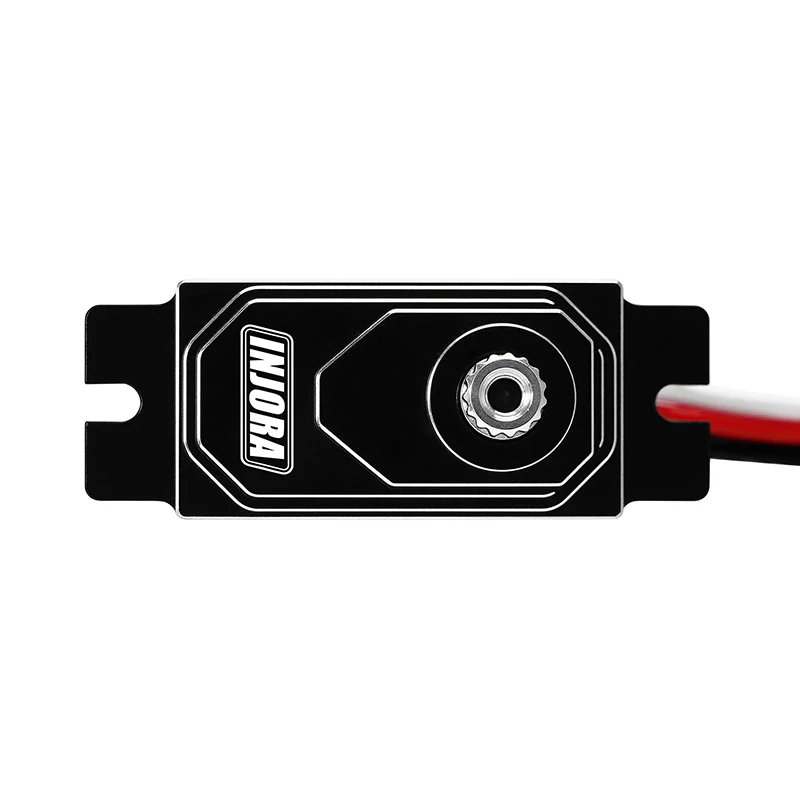

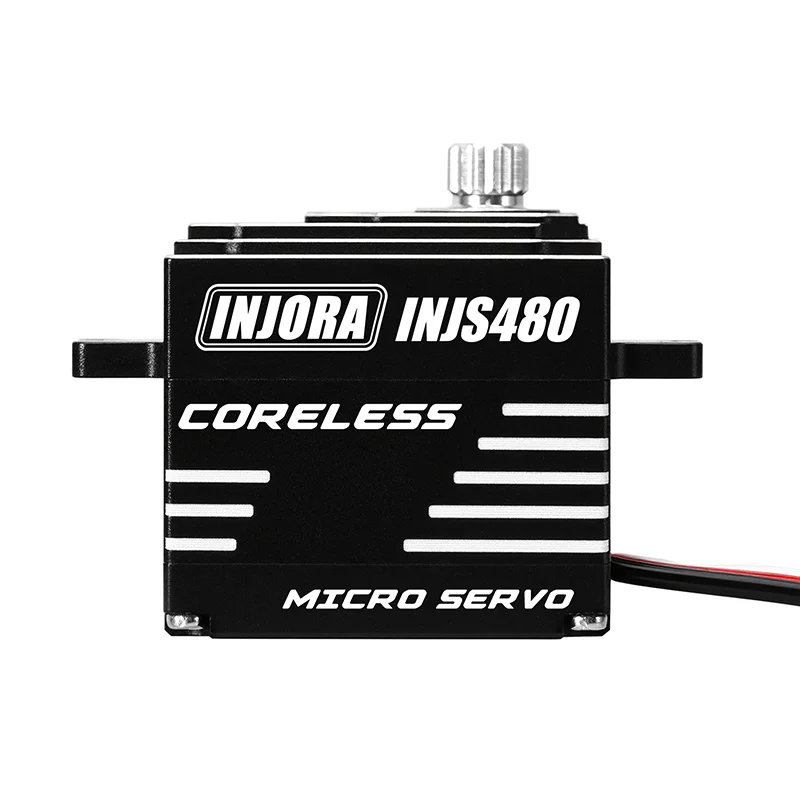

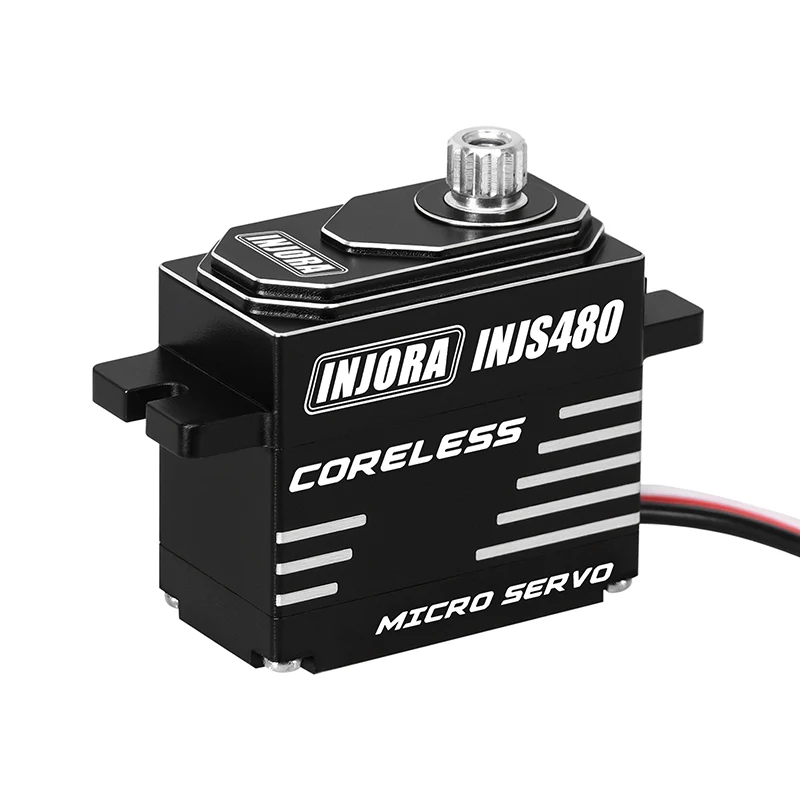

INJORA INJS480 Coreless Micro Servo with Servo Horn for 1/24 Axial SCX24

Features:

• All-Aluminum Case – Strong, durable housing with excellent heat dissipation
• Coreless Motor – Delivers faster response, smoother operation, and long-lasting reliability
• High Performance – Higher speed and torque for stronger, more precise steering

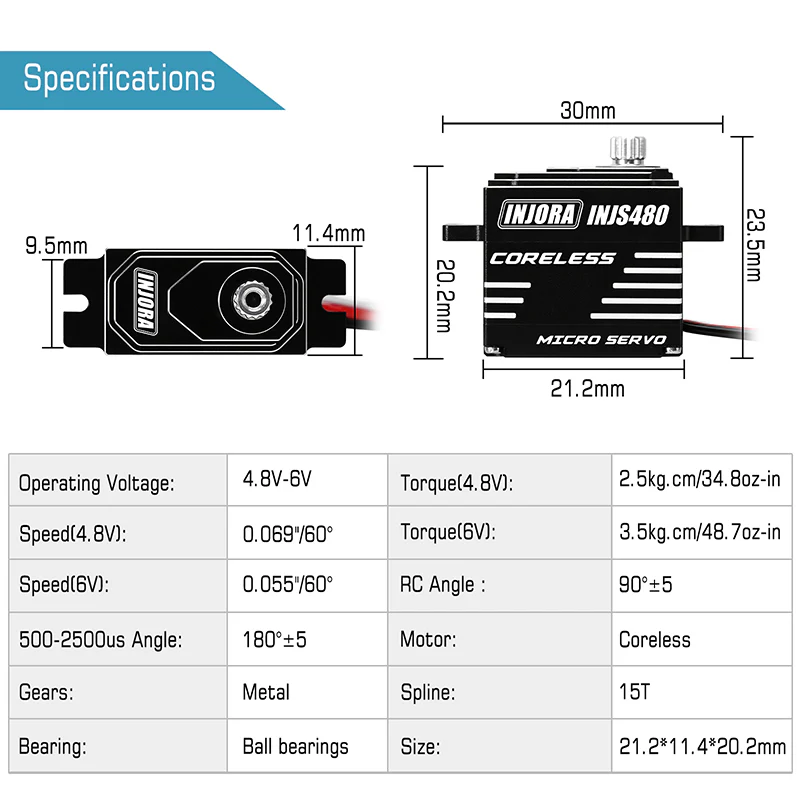

Servo Specifications:

• Part Number: INJS480
• Operating Voltage: 4.8V-6V
• Torque(4.8V): 2.5kg.cm
• Speed(4.8V): 0.069"/60°
• Torque(6V): 3.5kg.cm
• Speed(6V): 0.055"/60°
• RC Angle: 90°±5
• 500-2500μs Angle: 180°± 5
• Motor: Coreless
• Gears: Metal
• Spline: Φ3.9 15T
• Bearing: Ball bearings
• Size: 21.2*11.4*20.2mm
• Weight: 9.8g
• Perfect fit for stock SCX24 servo mount and Emax ES08MA II mount

Servo Mount Specifications:

• Material: Aluminum
• Weight: 4g (0.14oz)
• Mountable with Y links or two piece of the upper links
• Side post can be adjusted from front to back for larger servo clearance
• Also compatible with stock SCX24 servo and Emax ES08MA II Servo
