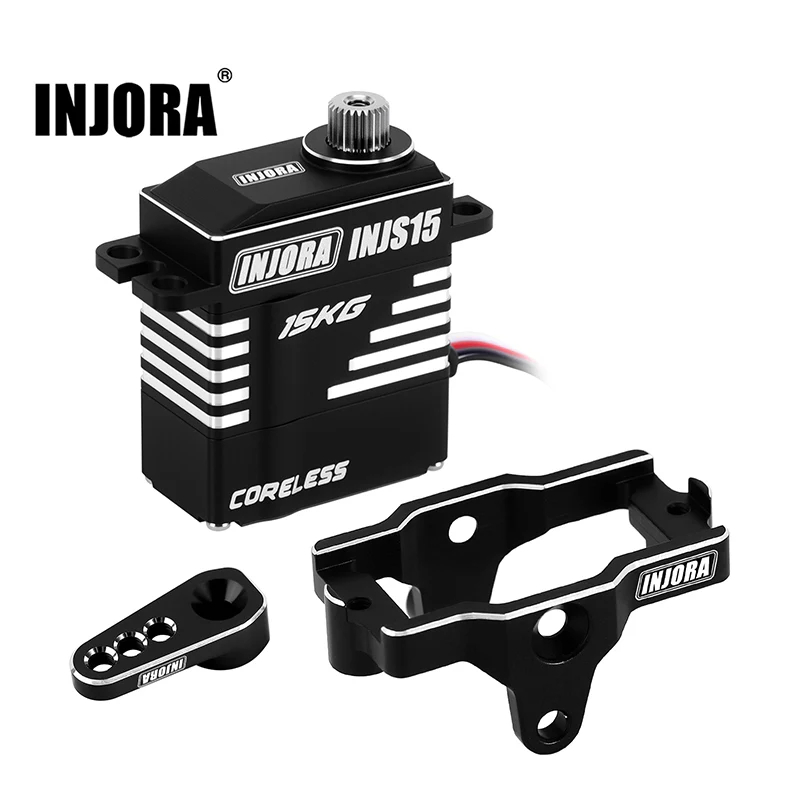

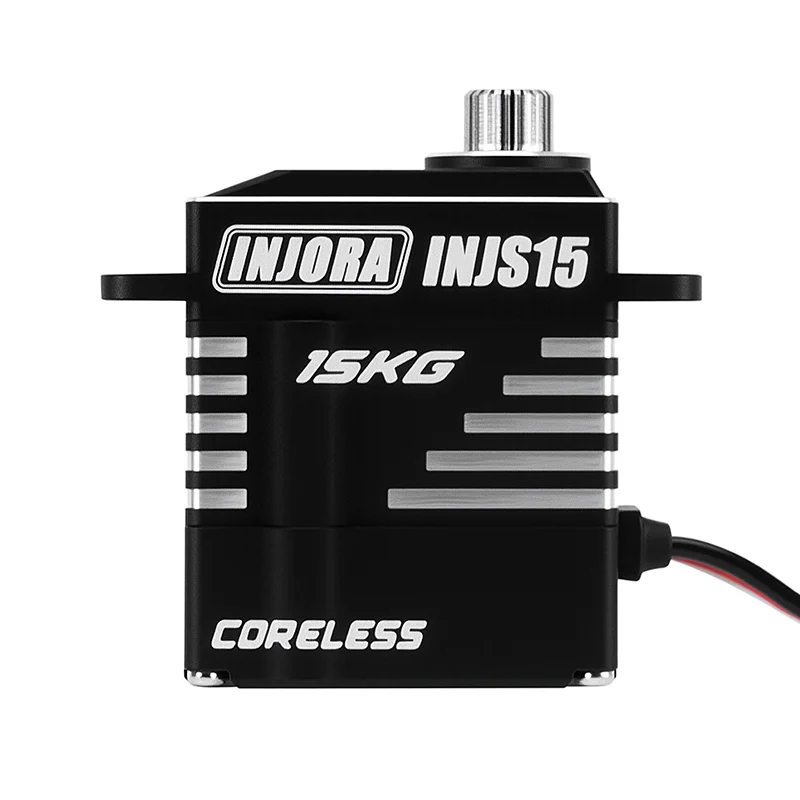

INJORA INJS15 Waterproof Coreless Servo with Mount & Horn for 1/18 TRX4M

Product image 1
1 / 10

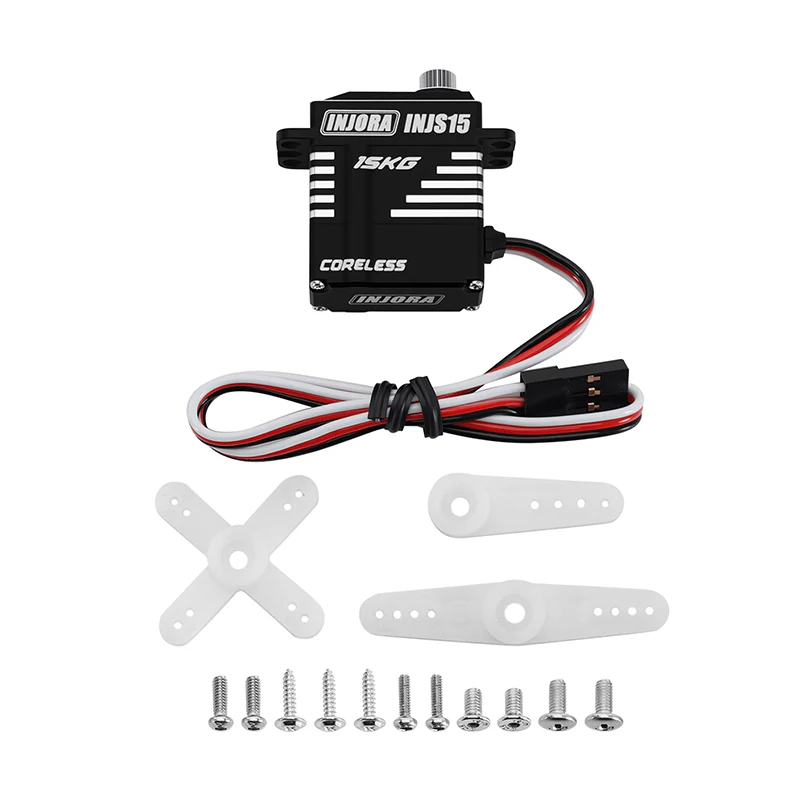

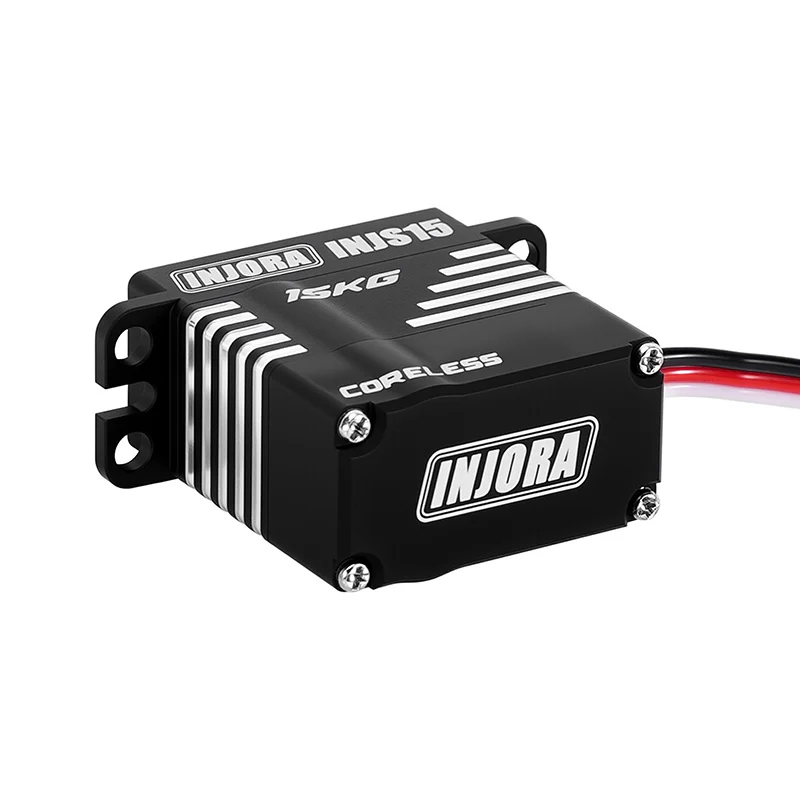

INJORA INJS15 Waterproof Coreless Servo with Mount & Horn for 1/18 TRX4M

INJORA INJS15 Waterproof Coreless Servo with Mount & Horn for 1/18 TRX4M

Features:

  • Waterproof Servo
  • CNC-machined aluminum case for strength and durability
  • Coreless motor provides fast response and stable output
  • Stainless steel gears for reliable long-term use
  • High torque output supports heavier micro crawler builds
  • Same size as INJS11, but with more torque — a great choice for heavier crawlers

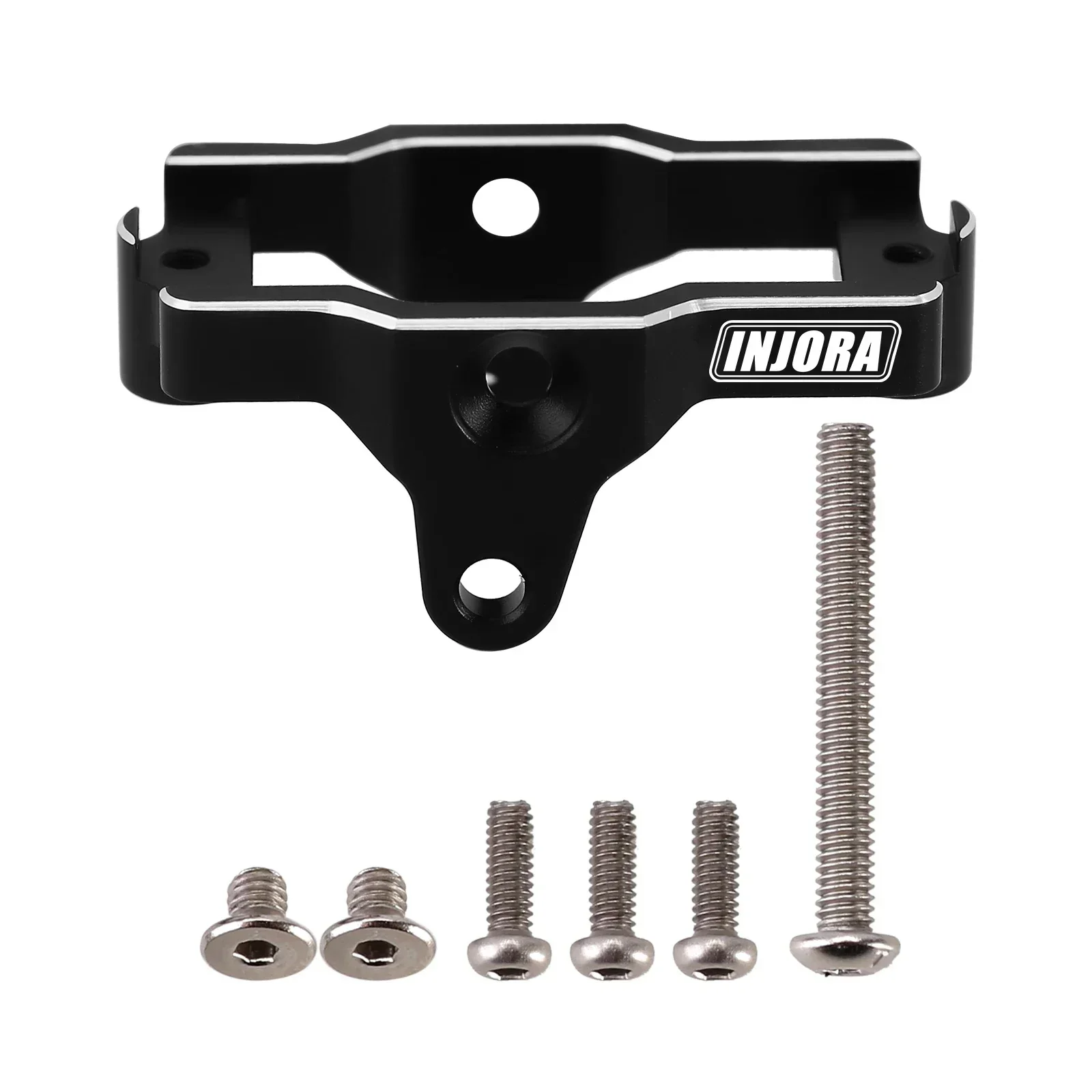

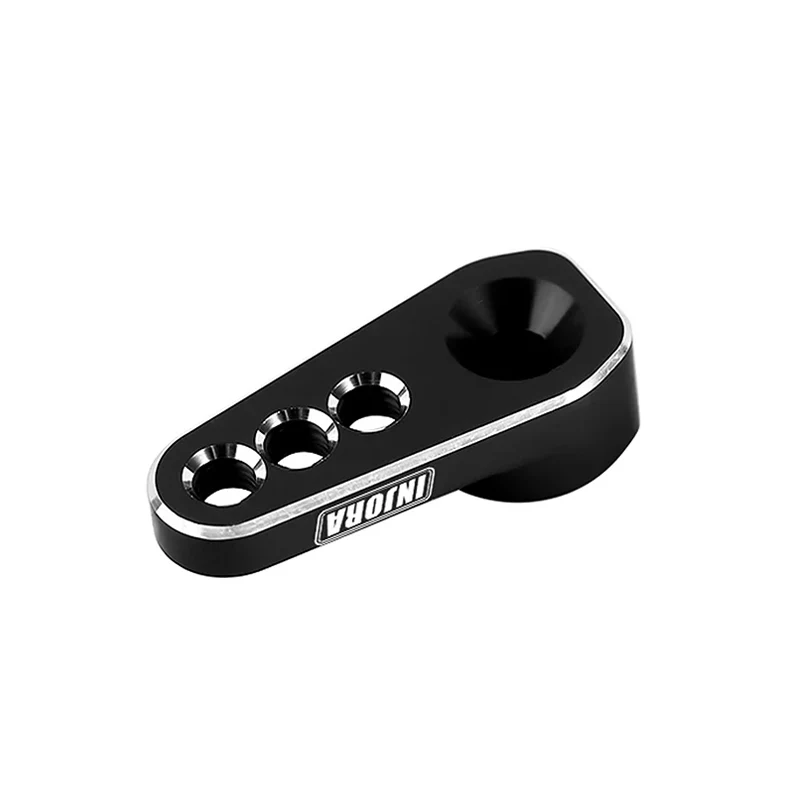

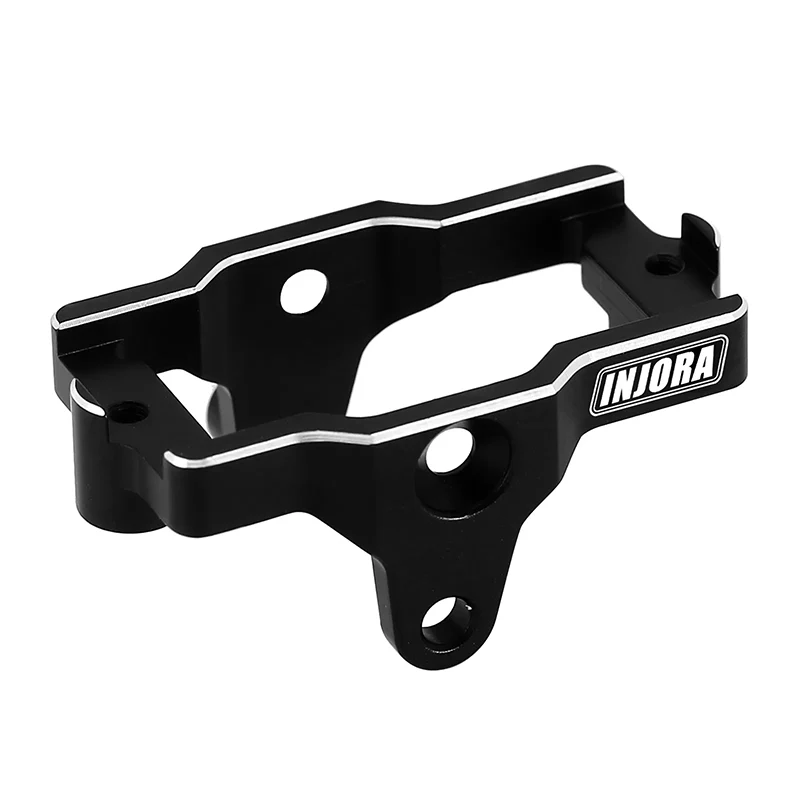

    Includes aluminum servo mount and horn for TRX4M

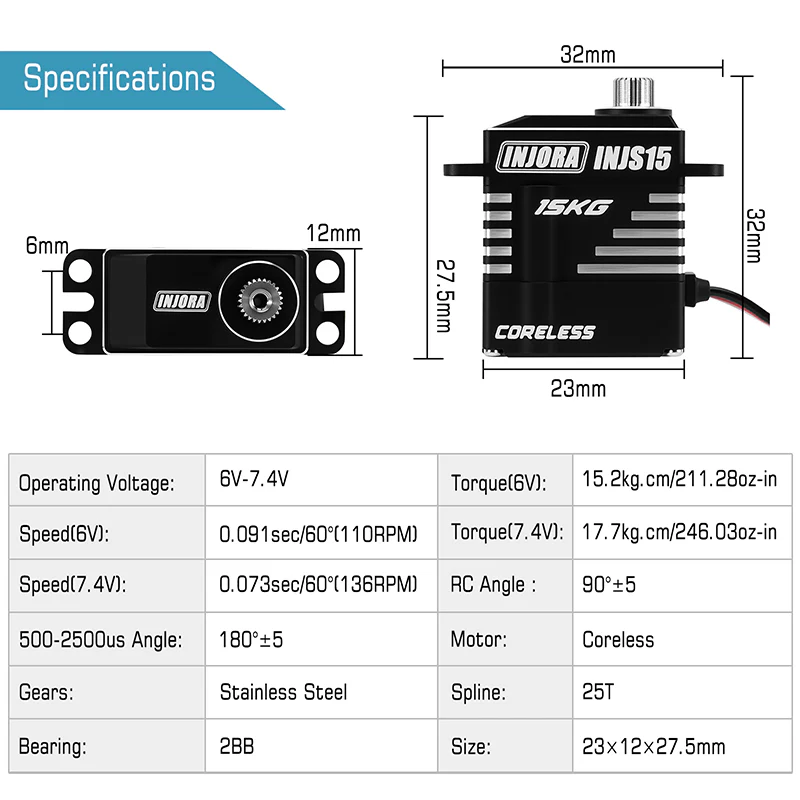

Specifications:

  • Part Number: INJS15
  • Operating Voltage: 6V-7.4V
  • Torque(6V): 15.2kg.cm/211.28oz.in
  • Speed(6V): 0.091sec/60° (110RPM)
  • Torque(7.4V): 17.7kg.cm/246.03oz.in
  • Speed(7.4V): 0.073sec/60° (136RPM)
  • RC Angle: 90°±5°
  • 500-2500μs Angle: 180°±5°
  • Motor: Coreless
  • Gears: Stainless Steel

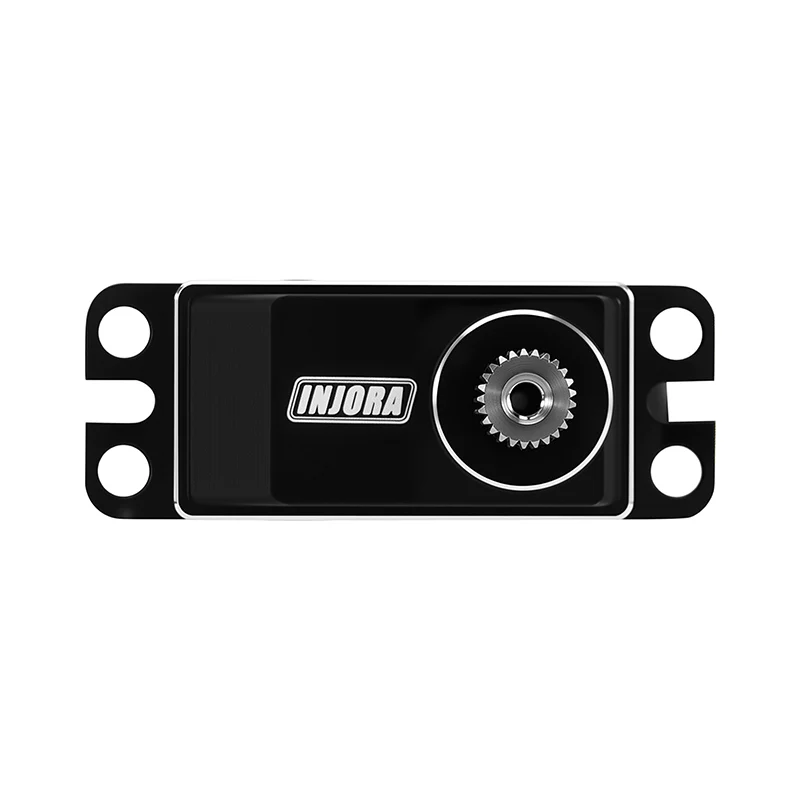

  • Spline: Φ4.9 Mini 25T
  • Bearing: 2BB
  • Lead Length: 250mm
  • Size: 23×12×27.5mm
  • Weight: 22g
  • Waterproof: YES
Select Option
From $1.75

Original: $4.99

-65%
INJORA INJS15 Waterproof Coreless Servo with Mount & Horn for 1/18 TRX4M—

$4.99

$1.75

Product Information

Shipping & Returns

Description

INJORA INJS15 Waterproof Coreless Servo with Mount & Horn for 1/18 TRX4M

Features:

  • Waterproof Servo
  • CNC-machined aluminum case for strength and durability
  • Coreless motor provides fast response and stable output
  • Stainless steel gears for reliable long-term use
  • High torque output supports heavier micro crawler builds
  • Same size as INJS11, but with more torque — a great choice for heavier crawlers
    Includes aluminum servo mount and horn for TRX4M

Specifications:

  • Part Number: INJS15
  • Operating Voltage: 6V-7.4V
  • Torque(6V): 15.2kg.cm/211.28oz.in
  • Speed(6V): 0.091sec/60° (110RPM)
  • Torque(7.4V): 17.7kg.cm/246.03oz.in
  • Speed(7.4V): 0.073sec/60° (136RPM)
  • RC Angle: 90°±5°
  • 500-2500μs Angle: 180°±5°
  • Motor: Coreless
  • Gears: Stainless Steel
  • Spline: Φ4.9 Mini 25T
  • Bearing: 2BB
  • Lead Length: 250mm
  • Size: 23×12×27.5mm
  • Weight: 22g
  • Waterproof: YES
