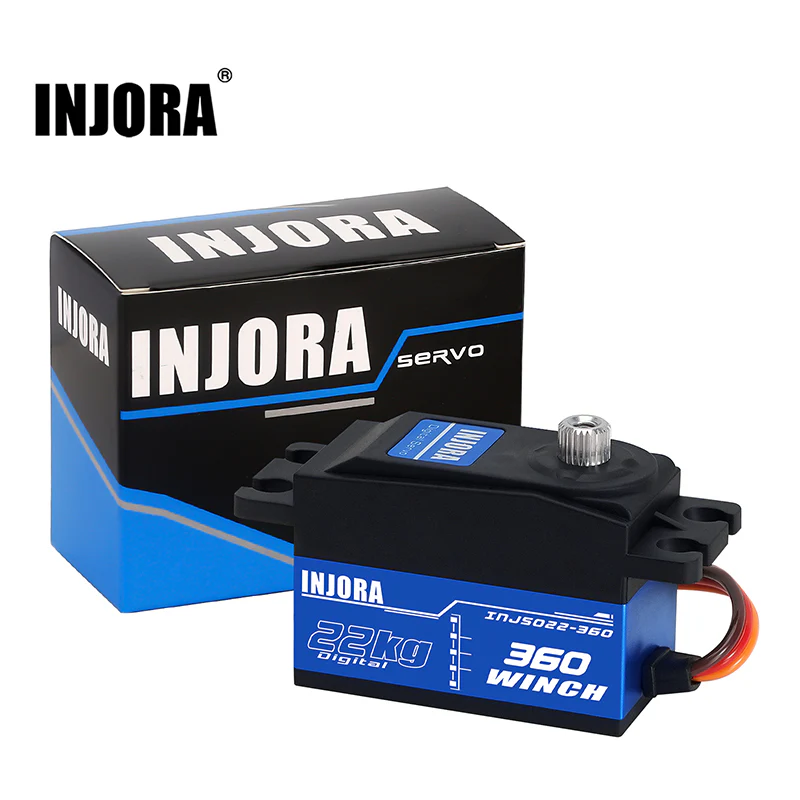

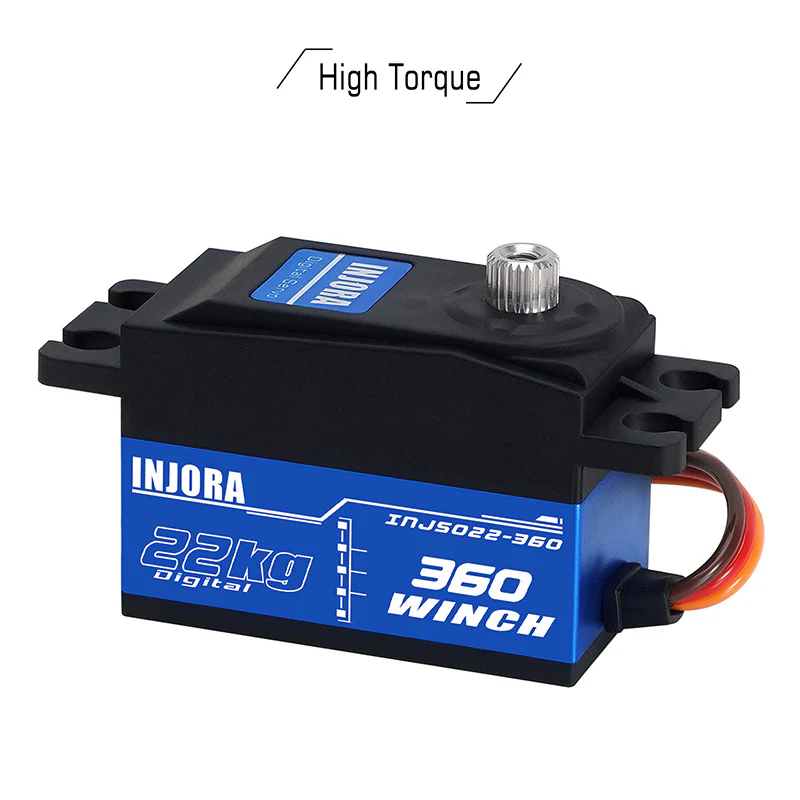

[UK Clearance Deal] INJORA INJS022-360 22KG Low-Profile Brushed Servo Winch for 1/10 RC Crawler

Product image 1
1 / 7

[UK Clearance Deal] INJORA INJS022-360 22KG Low-Profile Brushed Servo Winch for 1/10 RC Crawler

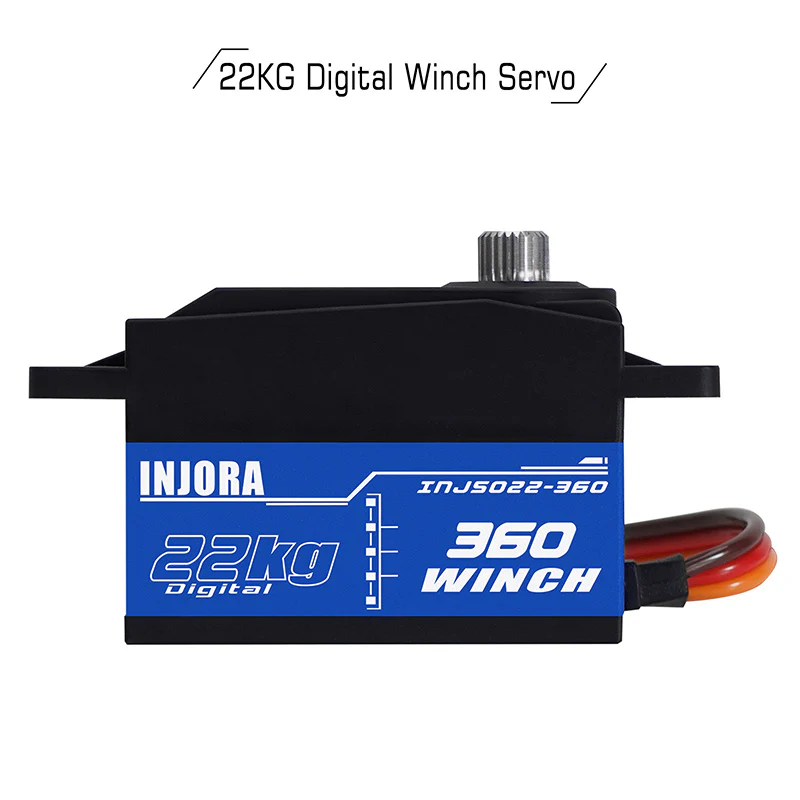

INJORA INJS022-360 22KG 360° Rotation Digital Servo Winch Spool for RC Crawler Car Boat Model

Suit for RC Car Robot Model

Features:

  • 360 degree continuous rotation
  • High performance digital standard
  • Reinforced metal gears and lower noise

INJS022-360 Servo Specifications:

  •  Waterproof: No
  • Dead Band: 4μs
  • Neutral Position: 1500μs/50hz
  • Motor: Core motor
  • 500-2500μs: 360 Continuous Rotation
  • Voltage Range: 4.8V-6.0V
  • Operating Speed(4.8V): 56rpm
  • Operating Speed(6.0V): 67rpm
  • Stall Torque(4.8V): 17.6kg.cm
  • Stall Torque(6.0V): 22kg.cm
  • Dimensions: 40X20X28.8mm
  • Weight: 50g
  • Connector Wire Length: JR 300 mm
  • Bearing: 2BB
  • Spline: Φ5.9 25T
$4.76

Original: $13.59

-65%
[UK Clearance Deal] INJORA INJS022-360 22KG Low-Profile Brushed Servo Winch for 1/10 RC Crawler—

$13.59

$4.76

Product Information

Shipping & Returns

Description

INJORA INJS022-360 22KG 360° Rotation Digital Servo Winch Spool for RC Crawler Car Boat Model

Suit for RC Car Robot Model

Features:

  • 360 degree continuous rotation
  • High performance digital standard
  • Reinforced metal gears and lower noise

INJS022-360 Servo Specifications:

  •  Waterproof: No
  • Dead Band: 4μs
  • Neutral Position: 1500μs/50hz
  • Motor: Core motor
  • 500-2500μs: 360 Continuous Rotation
  • Voltage Range: 4.8V-6.0V
  • Operating Speed(4.8V): 56rpm
  • Operating Speed(6.0V): 67rpm
  • Stall Torque(4.8V): 17.6kg.cm
  • Stall Torque(6.0V): 22kg.cm
  • Dimensions: 40X20X28.8mm
  • Weight: 50g
  • Connector Wire Length: JR 300 mm
  • Bearing: 2BB
  • Spline: Φ5.9 25T
