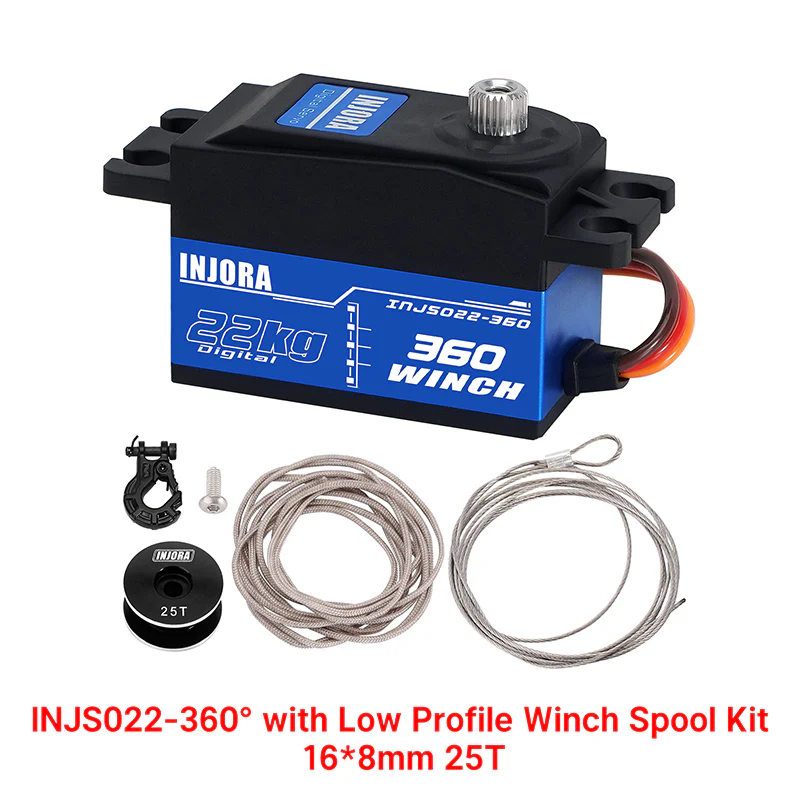

INJORA INJS022-360 22KG 360° Rotation Digital Servo Winch Spool for RC Crawler Car Boat Model

Suit for RC Car Robot Model

Features:

• 360 degree continuous rotation
• High performance digital standard
• Reinforced metal gears and lower noise


INJS022-360 Servo Specifications:

•  Waterproof: No
• Dead Band: 4μs
• Neutral Position: 1500μs/50hz
• Motor: Core motor
• 500-2500μs: 360 Continuous Rotation
• Voltage Range: 4.8V-6.0V
• Operating Speed(4.8V): 56rpm
• Operating Speed(6.0V): 67rpm
• Stall Torque(4.8V): 17.6kg.cm
• Stall Torque(6.0V): 22kg.cm
• Dimensions: 40X20X28.8mm
• Weight: 50g
• Connector Wire Length: JR 300 mm
• Bearing: 2BB
• Spline: Φ5.9 25T

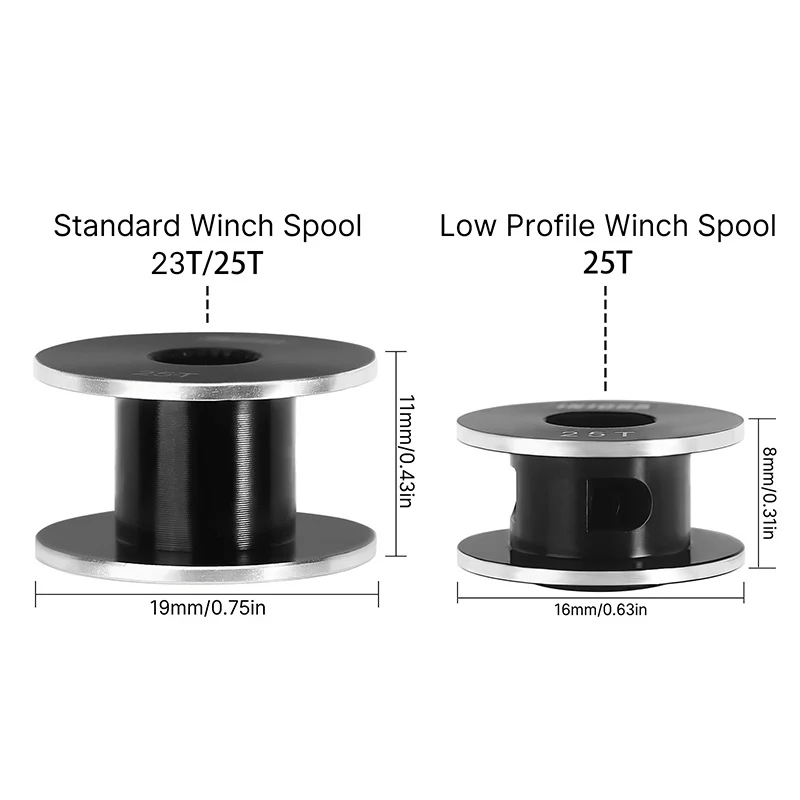

Winch Spool Specifications:

• Materials: Aluminium
• Kind: Standard (19*11mm),  Low Profile(16*8mm)
• Standard Winch Spool Teeth: 23T/25T
• Low Profile Winch Spool Teeth: 25T
• Mounting Screw: M3
• Nylon Rope Length: 116cm (45.67in)
• Steel Rope Length: 96cm (37.80in)
