INJORA Fat Viper Gold Edition 2204 Brushless Outrunner Motor for 1/18 TRX4M

Compatibility Notice:

• ESC: Only compatible with INJORA MBL32 ESC and QuicRun Mini24 ESC. Not compatible with other ESCs!
• Transmission:  Only compatible with INJORA 370 transmission.
• Battery: 3S batteries are highly recommended for optimal performance and smoother low-speed control.

Features:

• New gold finish for a more eye-catching appearance.

• Smooth and linear at low speeds, powerful and aggressive at high speeds.

• Runs more quietly than brushed systems, producing virtually no noise.

• 2204 gold fat viper outrunner motor will give your car a better driving performance.

Specifications:

• Model Number: 2204

• Motor Type: Sensorless Brushless Outrunner

• RPM/Volt: 2400KV

• Motor Poles: 14

• Sine Mode Power: 7

• Max Power: 2500W

• No-Load Current: 0.7A

• Max Peak Current: 50A

• Motor Connectors: PH2.0 3Pin

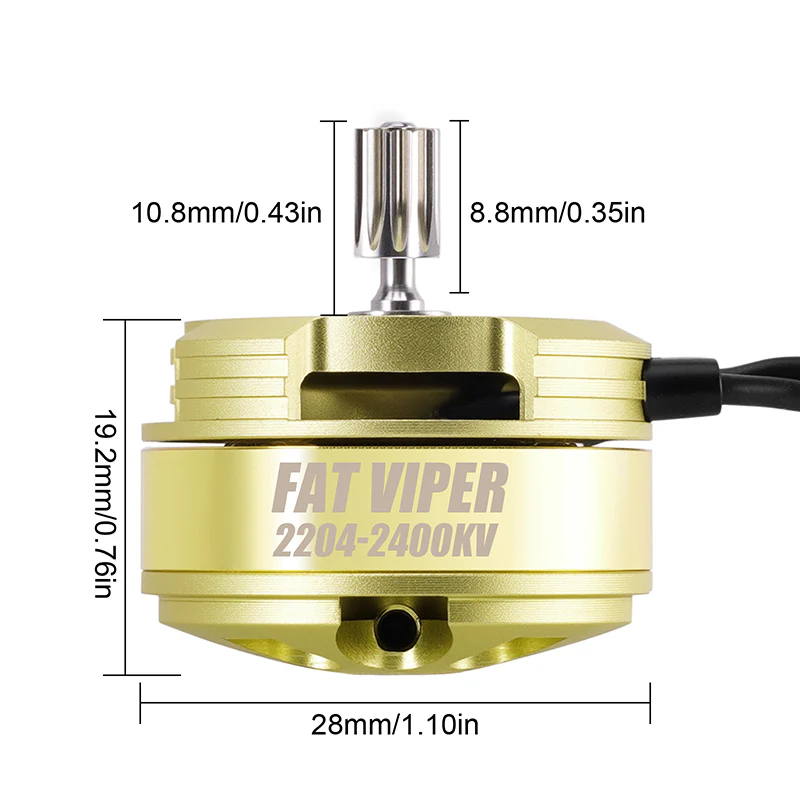

• Dimensions: Φ28*19.2mm

• Motor Output Shaft: Φ2mm

• Weight: 28g

• Motor Pinion: 0.4mod 10T

• Waterproof: Yes

Package List:
1 * Fat Viper 2204 Brushless Motor
1 * Motor Pinion
