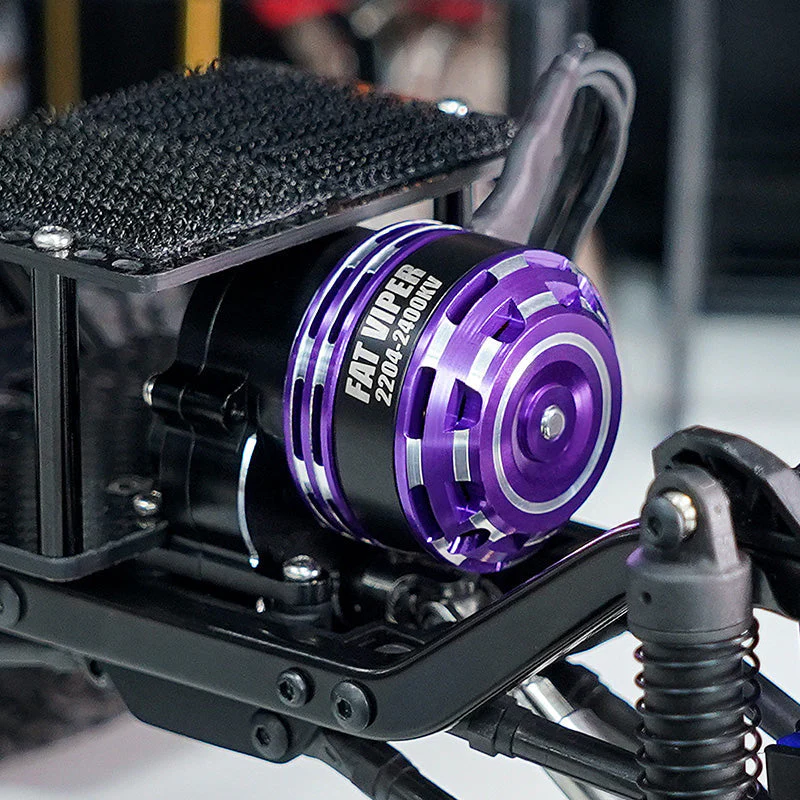

INJORA Fat Viper 2204 Brushless Outrunner Motor & Transmission for 1/18 RC Crawler TRX4M

Compatibility Notice:

• ESC: Only compatible with INJORA MBL32 ESC and QuicRun Mini24 ESC. Not compatible with other ESCs!
• Transmission:  Only compatible with INJORA 370 transmission.
• Battery: 3S batteries are highly recommended for optimal performance and smoother low-speed control.

Features:

• Smooth and linear at low speeds, powerful and aggressive at high speeds.

• Runs more quietly than brushed systems, producing virtually no noise.

• 2204 Fat Viper Outrunner Motor will give your car a better driving performance.

2400KV Motor Specifications:

• Model Number: 2204

• Motor Type: Sensorless Brushless Outrunner

• RPM/Volt: 2400KV

• Motor Poles: 14

• Sine Mode Power: 7

• Max Power: 2500W

• No-Load Current: 0.7A

• Max Peak Current: 50A

• Motor Connectors: PH2.0 3Pin

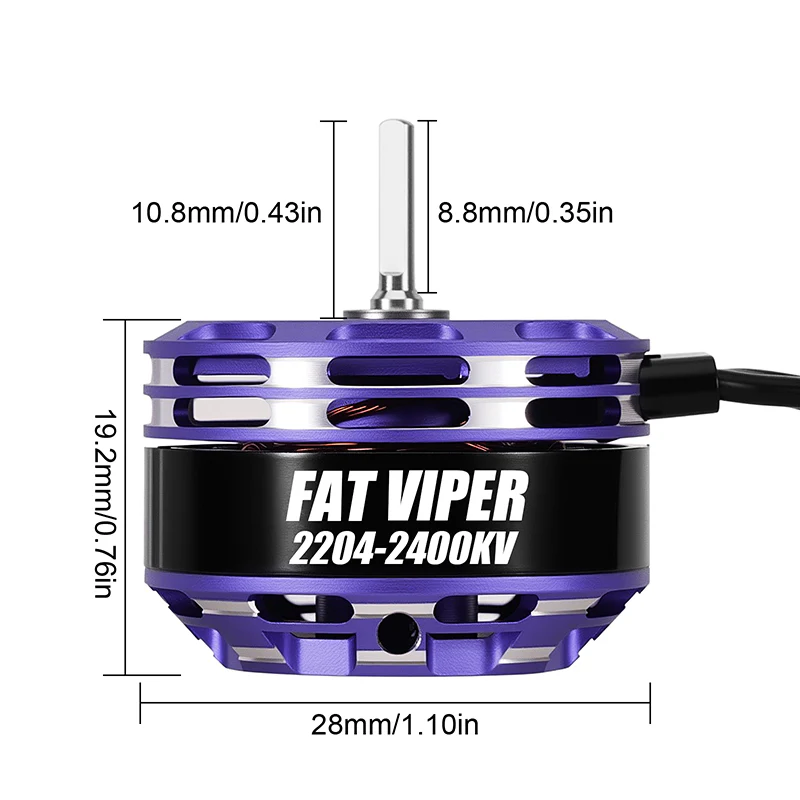

• Dimensions: Φ28*19.2mm

• Motor Output Shaft: Φ2mm

• Weight: 28g
• Motor Pinion: 0.4mod 10T
• Waterproof: Yes

Transmission Specifications:

• Housing Material: Aluminum

• Gears Material: Stainless Steel

• Internal Gears: 24.4:1 gear set, underdrive 32%
