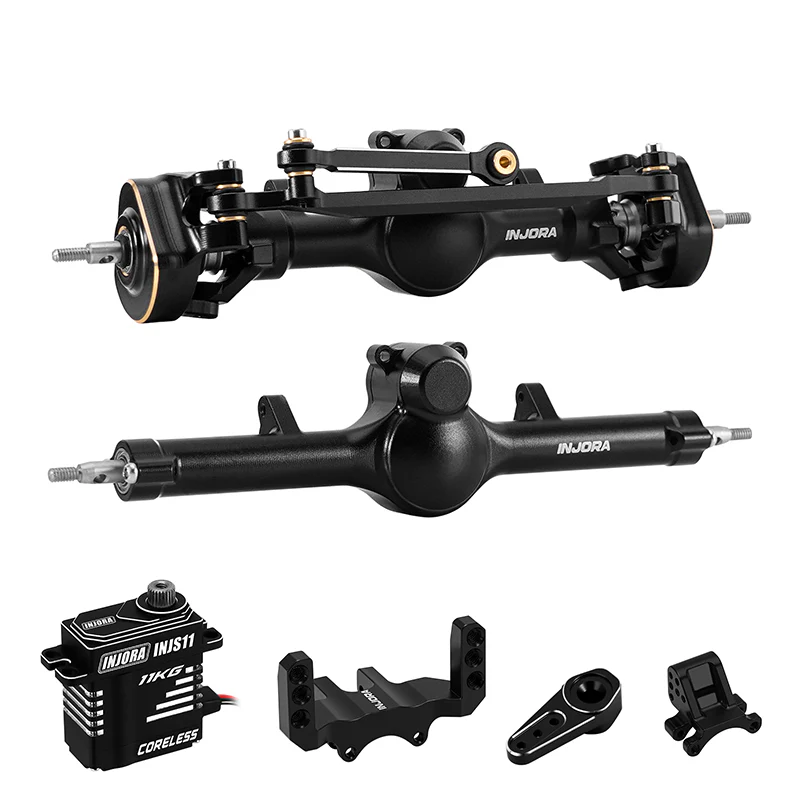

INJORA +4mm Double Joint Shafts Planet Axles & Servo Kit for 1/24 Axial SCX24 Upgrade

Features:

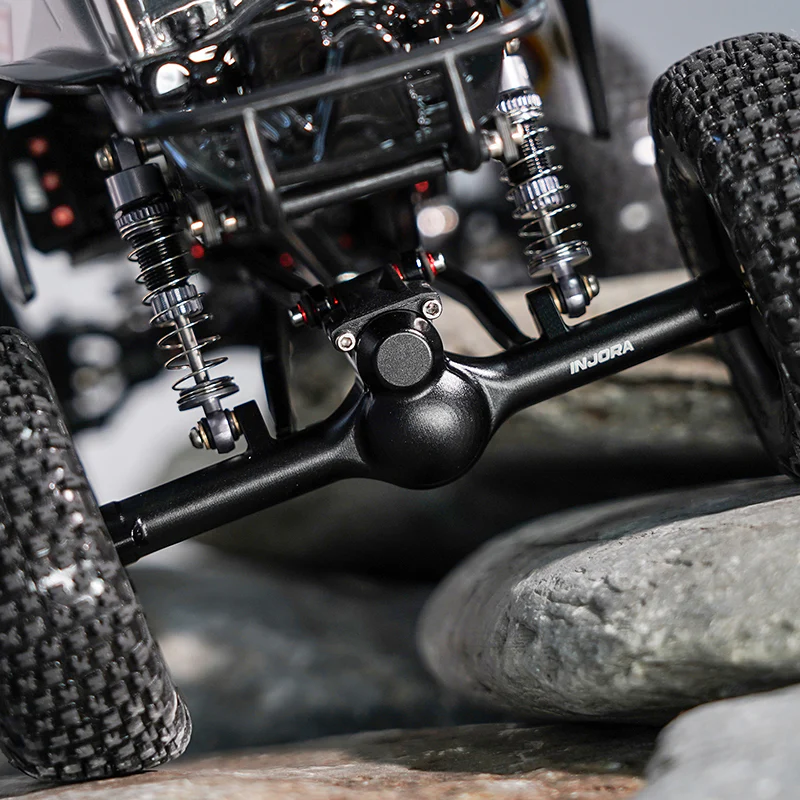

• Planet-Inspired Axle Design: Planet-shaped differential housing, precisely CNC-machined for a highly realistic scale appearance. Seamless integration with the axle tubes enhances visual accuracy.
• +4mm Width Per Side: Adds a total of 8mm width to enhance stability while maintaining scale accuracy.

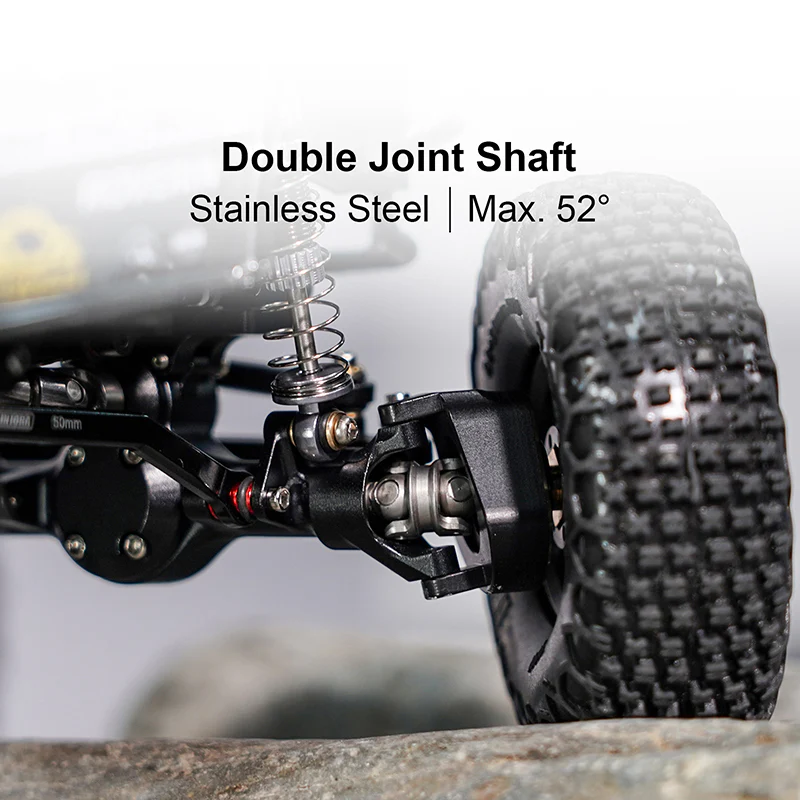

  Double Joint Shaft Design: Minimizes outer wheel vibration when turning at extreme angles.

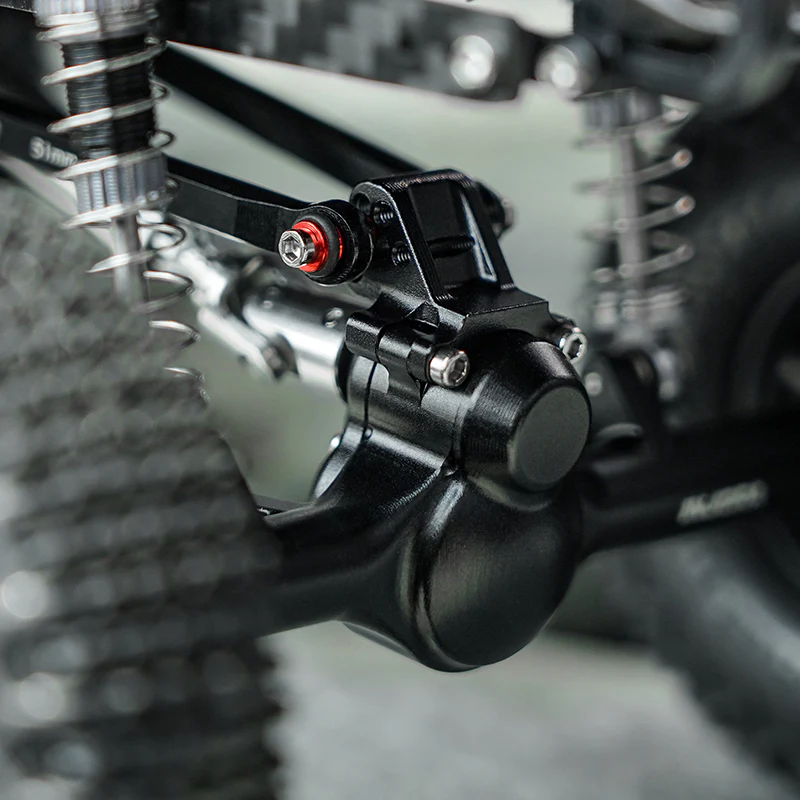

• Precision CNC Aluminum Steering Link: Shortens the distance between the steering link and the axle housing, ensuring a compact and clean design without excessive protrusion.

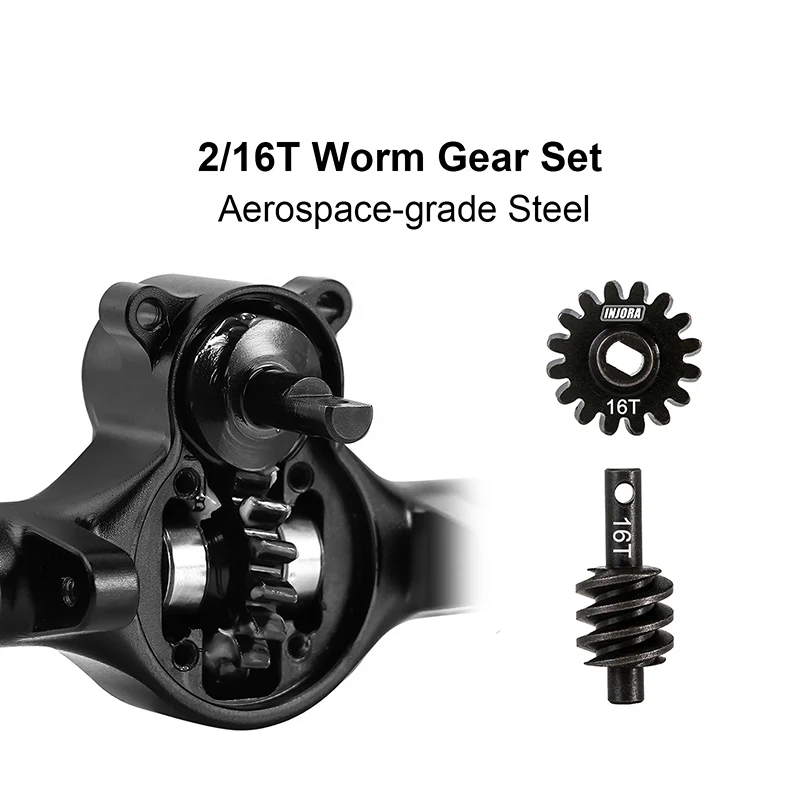

• Hardened Steel 2/16T Worm Gear Set: Made from aerospace-grade 20CrMnTi hardened steel for smooth, consistent performance and exceptional durability on tough terrain.
• Brass Steering Knuckles: Adds front axle weight for improved traction, better climbing capability, and enhanced steering response.
• Adjustable Rear Truss Link Mount: Widens upper-lower link spacing and enhances anti-squat geometry for better uphill performance.

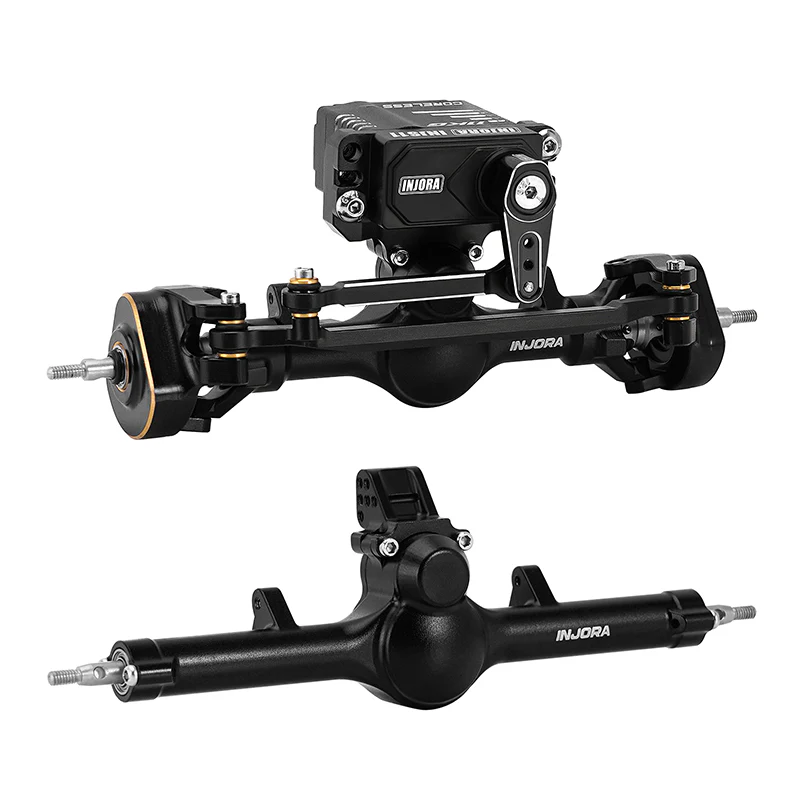

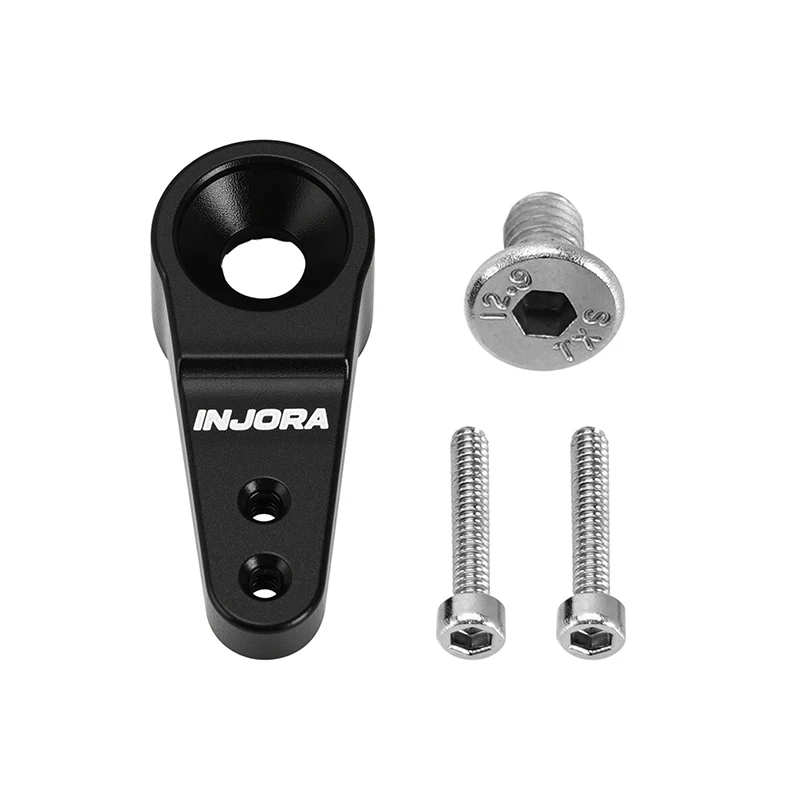

• Integrated Servo Kit: Features a complete steering system with servo, mount, and horn to boost steering accuracy and trail performance.

Planet Axles Specifications:

• Housing Material: Aluminum
• Steering Links Material: Aluminum
• Steering Knuckles Material: Brass
• Axle Gear Material: 20CrMnTi Hardened Steel
• Gear Ratio: 2/16T (Front & Rear)
• Shaft Type: Double Joint Shaft (Stainless Steel)
• Maximum Steering Angle: Approx. 52°
• Front Axle Weight: 59g
• Rear Axle Weight: 24g
• Overall Length: 105mm

INJS11 Servo Specifications:

• Operating Voltage: 6V-8.4V
• Torque(6V): 8kg-cm/111oz-in
• Speed(6V): 0.106"/60°
• Torque(7.4V): 9.5kg-cm/132oz-in
• Speed(7.4V): 0.085"/60°
• Torque(8.4V): 11kg-cm/153oz-in
• Speed(8.4V): 0.074"/60°
• RC Angle: 90°±5
• 500-2500μs Angle: 180°± 5
• Motor: Coreless
• Gears: Stainless Steel
• Spline: Φ4.9 Mini 25T
• Bearing: 2BB
• Size: 32*12*27mm
• Weight: 21g
